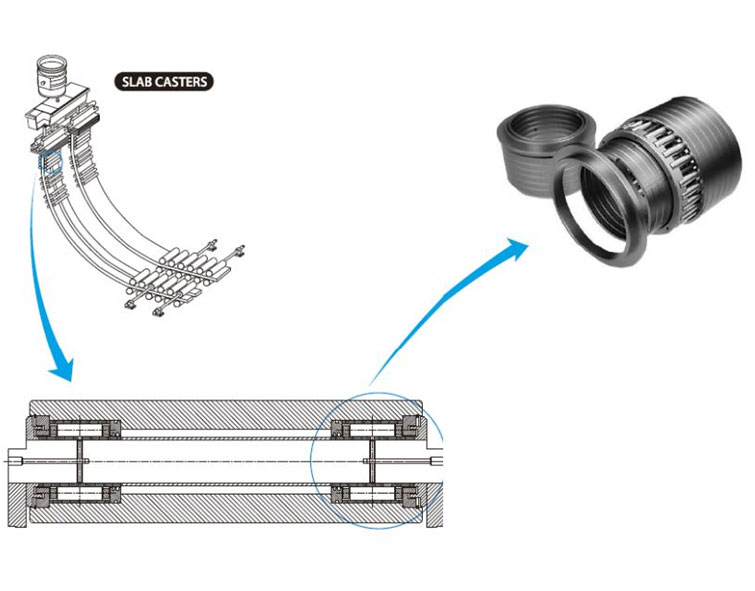

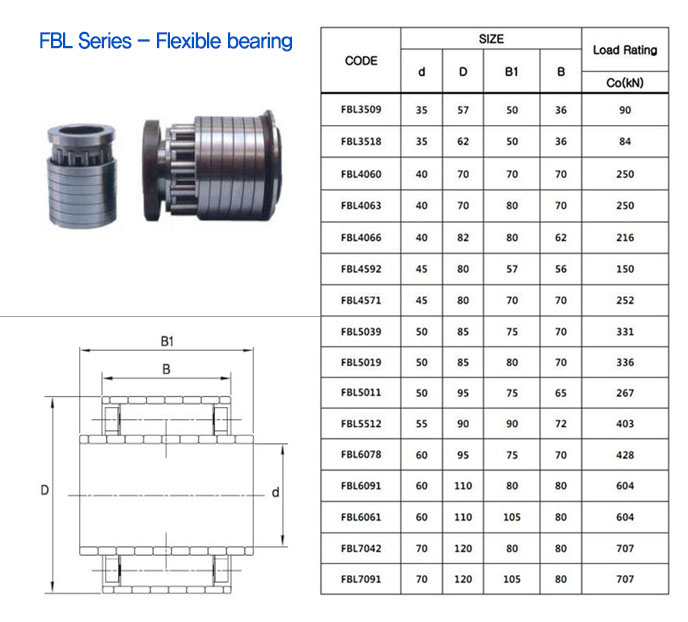

▶ Flexible bearing - mold & upper segment in continuous caster FBL series
[Components]
Spring outer ring
Spring inner ring
Cylindrical Roller + Cage assembly
Side rings
[Advantages and special features]
Flexible bearing with spring rings, made of special steel, solves below problems in strand guiding rolls in mold & upper segments
High temperature
Dust contamination
Heavy shock load
Space limitations
As the life of fiexble bearing is very long compared with that of needle bearing, end, users are re-using flexble bearing more than 3~4 times,
by cleaning and re-lubricating in maintenance period.
